DR–14 2025–10–09POWER ARCHITECTURE

Battery crate mockup

DR–15POWER ARCHITECTURE

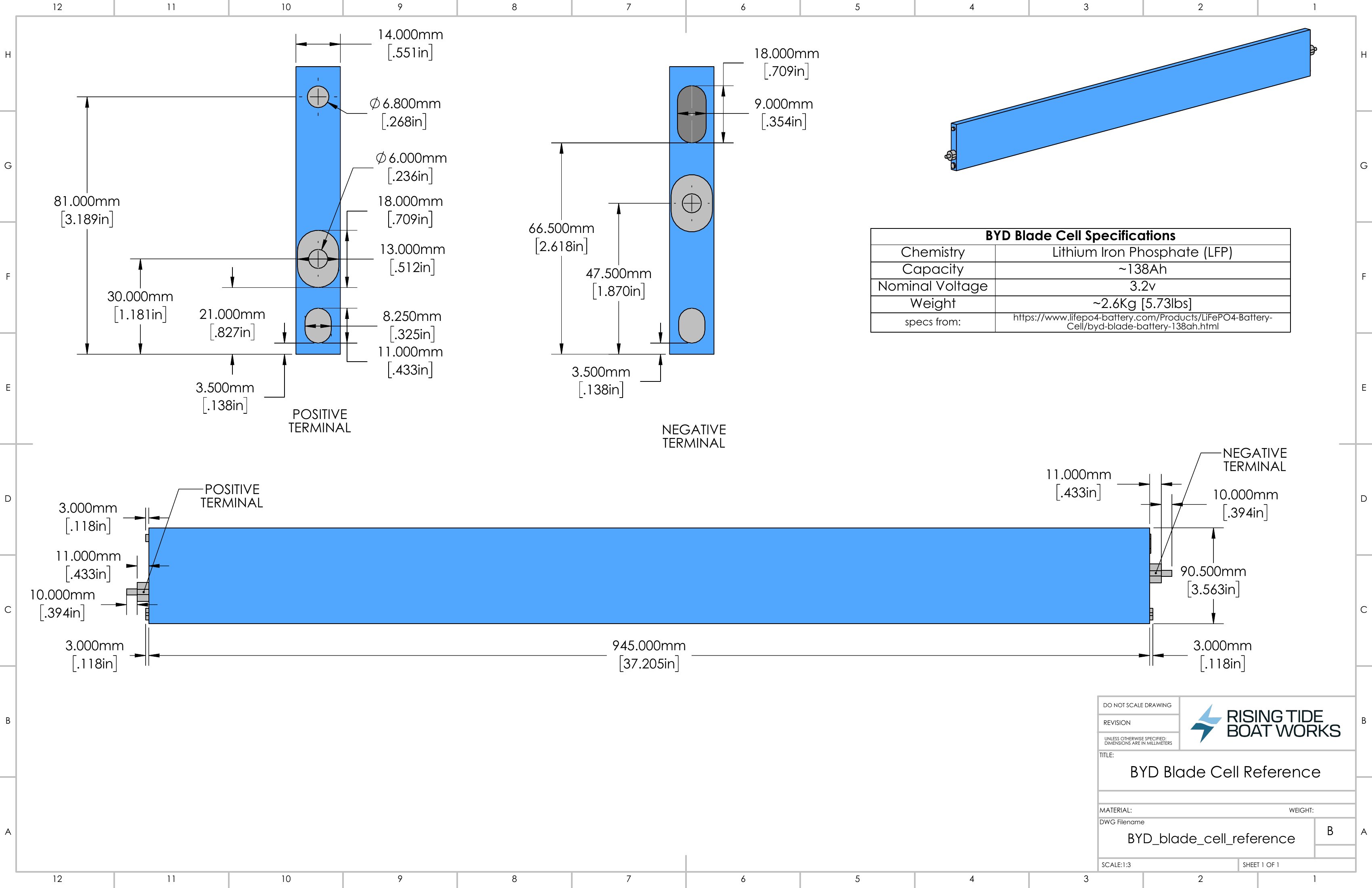

BYD Blade Cell Reference

DR–16POWER ARCHITECTURE

Battery crate frame v2

DR–17POWER ARCHITECTURE

4 Module Battery Crate

DR–18POWER ARCHITECTURE

Battery frame shelf asm v1

DR–19POWER ARCHITECTURE

Battery frame shelf v1

DR–20POWER ARCHITECTURE

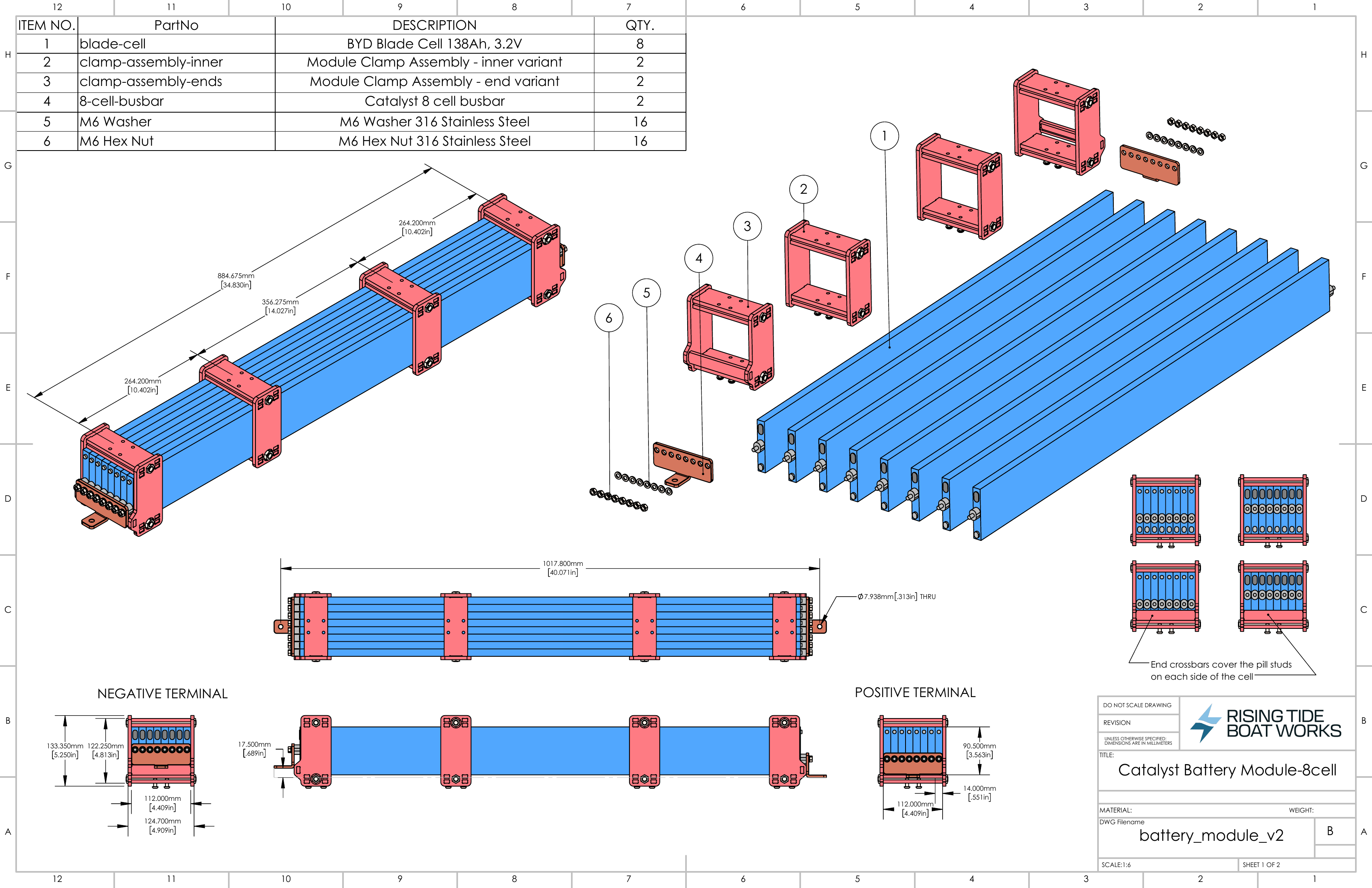

Catalyst Battery Module-8cell

DR–21POWER ARCHITECTURE

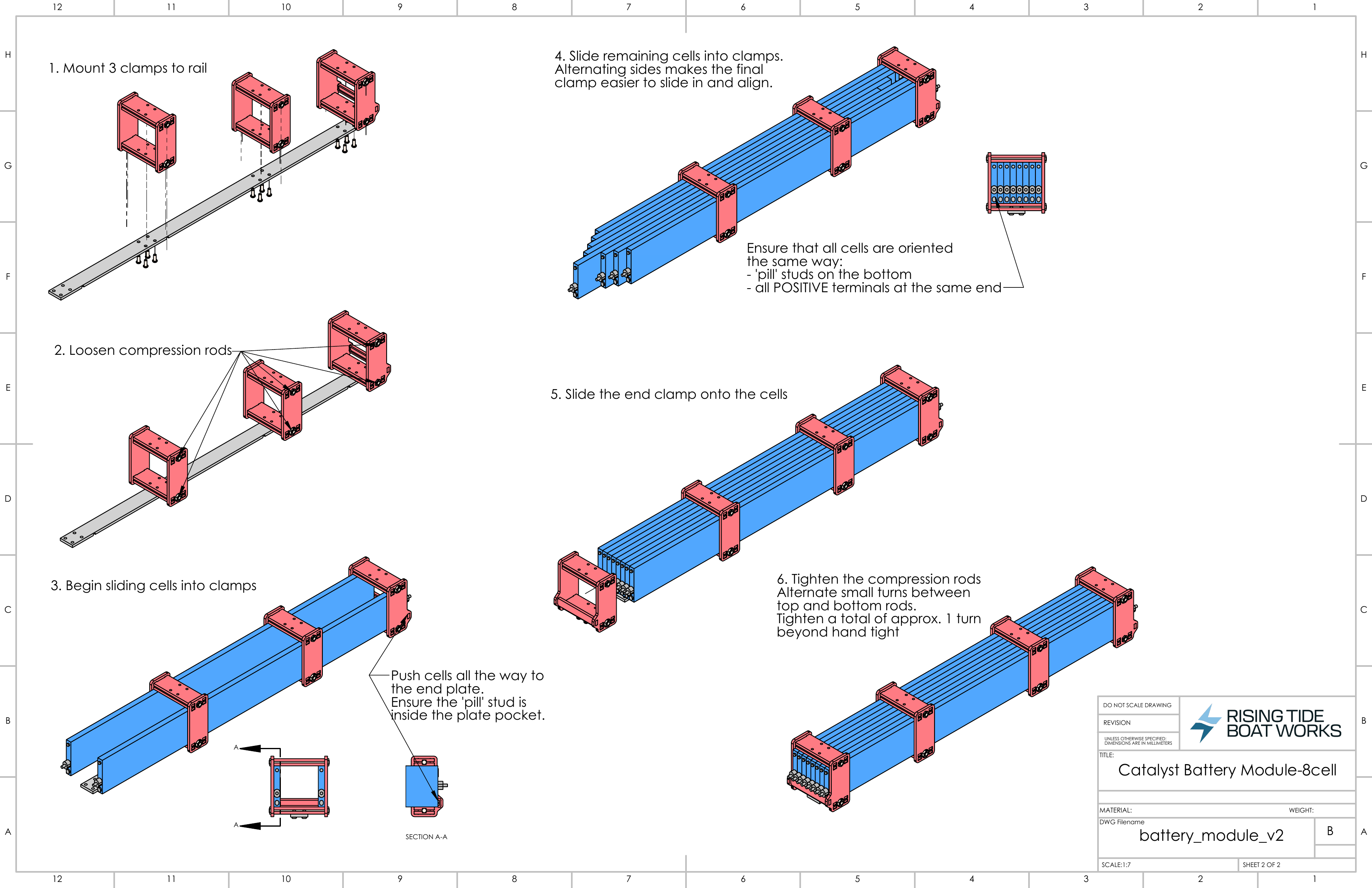

Catalyst Battery Module-8cell

DR–22POWER ARCHITECTURE

Battery Module Clamp Assembly

DR–23POWER ARCHITECTURE

Drill template

DR–24POWER ARCHITECTURE

Frame asm busbars v1

DR–25POWER ARCHITECTURE

Catalyst Battery Frame Assembly

DR–26POWER ARCHITECTURE

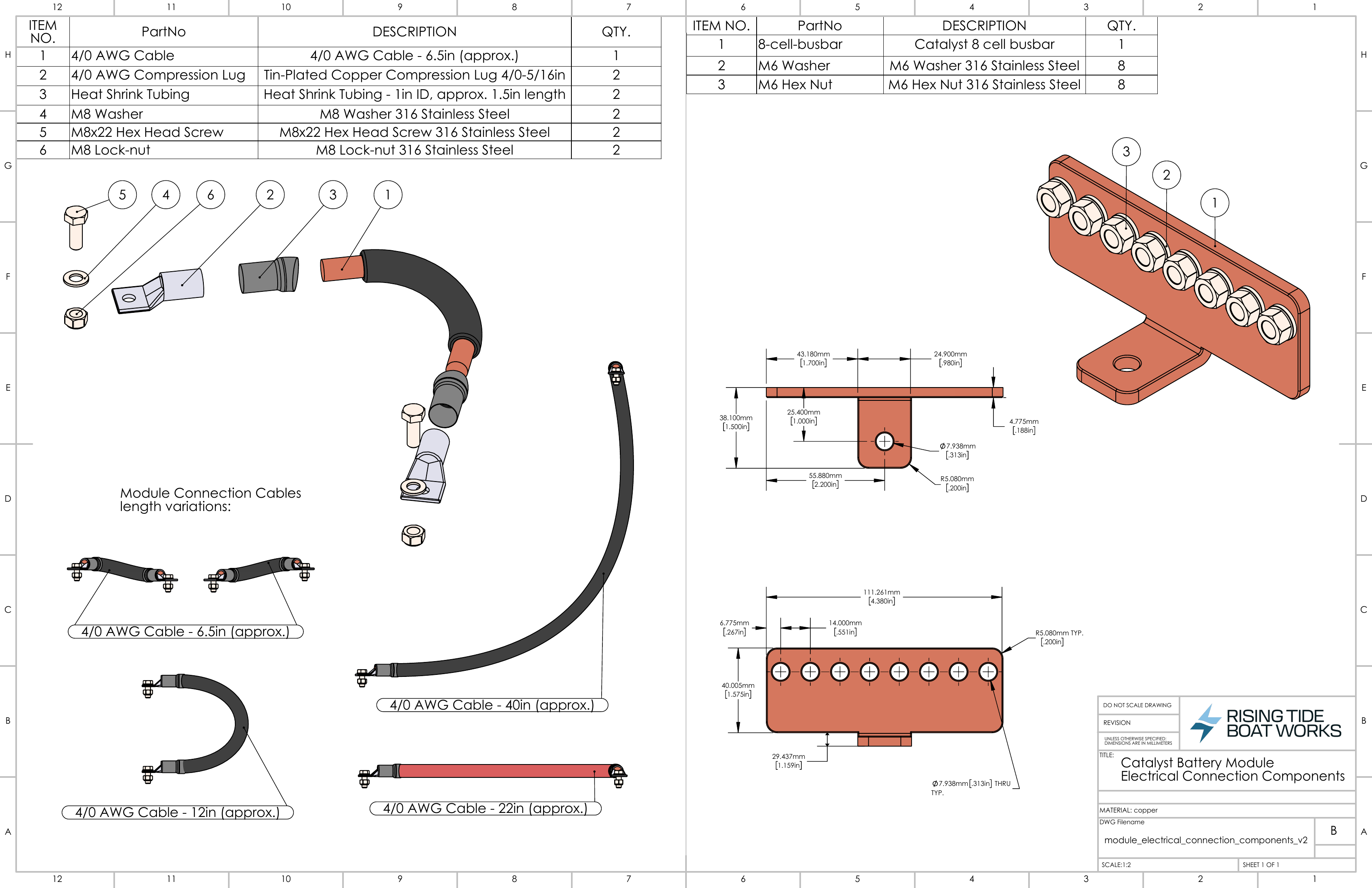

Catalyst Battery Module

DR–27POWER ARCHITECTURE

Solar panel drill template
